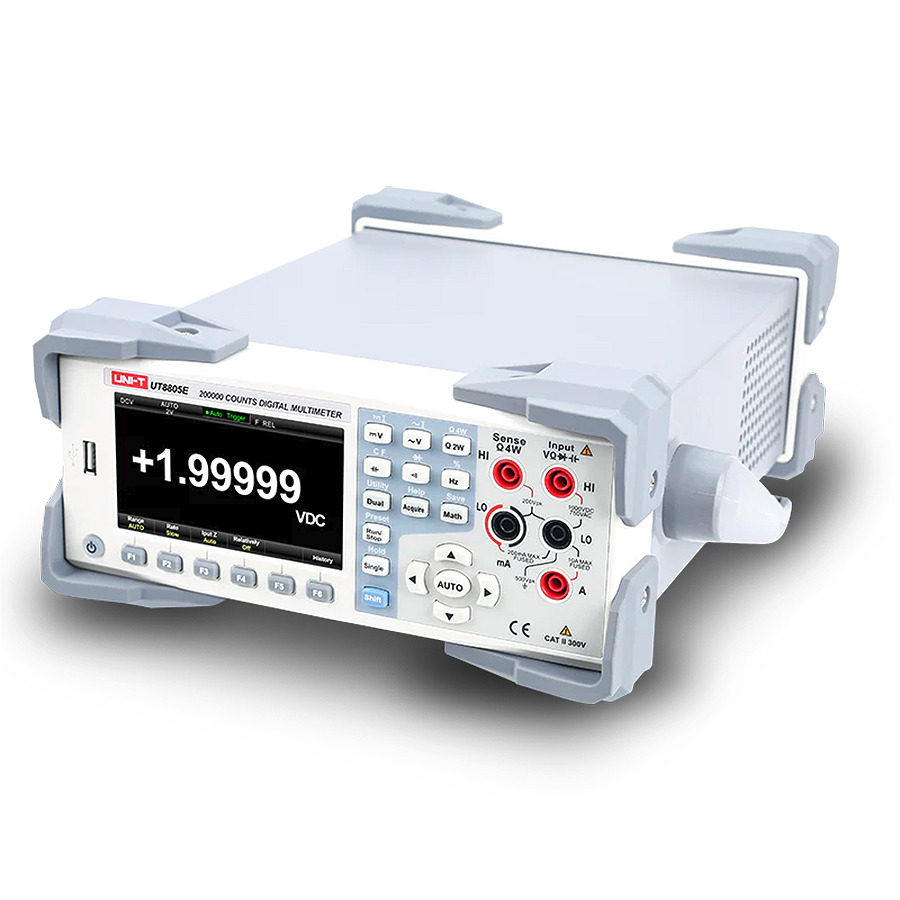

Uni-T UT8805E Benchtop Digital Multimeter

Features and Specifications

• 5.5 Digit Display, 199,999 Counts
• Auto-Ranging
• 0.015% Accuracy
• Continuity test: fixed 2Ω
• Diode test: 0V-4V
• Frequency measurement: 20Hz - 1MHz
• Cycle measurement: 1μs - 0.05s
• Dual Display 4.3-in 480x272 TFT-LCD
• True-RMS AC voltage/current measurement
• Thermocouple and thermal resistance sensor supported
• DC voltage measurement: 200mV, 2V, 20V, 200V, 1000V
• DC current measurement: 200µA, 2mA, 20mA, 200mA, 2A, 10A
• AC voltage measurement: RMS 200mV, 2V, 20V, 200V, 750V
• AC current measurement: RMS 2mA, 20mA, 200mA, 2A, 10A
• Resistance measurement: (2-wire, 4-wire) 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ
• Capacitance measurement: 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, 2mF
• Mathematical functions: Maximum, minimum, average, standard deviation, relative measurement, bar chart, histogram, trend chart, dB/ dBm, Pass/Fail, etc
• Configuration interfaces: USB Device, USB Host, LAN, GPIB, RS-232C

UT8805E Overview

The Uni-T UT8805E is a digital multimeter (DMM), designed for reliable and efficient benchtop use. It offers a comprehensive range of measurement capabilities, including voltage (both DC and AC), current (DC and AC), resistance (2-wire and 4-wire), as well as mathematical operations such as statistics, limits, dB, relative operations, and dBm. You can tailor your calculations to meet the specific requirements of your measurements, which cover capacitance, inductance, diode testing, frequency measurement, and temperature. Additionally, it offers features like pass/fail testing, and maximum/minimum/average/relative value measurements.

It features a 5.5-digit display with an impressive resolution of 199,999 counts, showcased on its 4.3-inch TFT LCD screen. This exceptional clarity ensures precision in every reading. You can seamlessly toggle between displaying voltage or current alongside the frequency value, enhancing your ability to diagnose complex circuits. The UT8805E DMM is versatile and provides four distinct display modes to cater to various measurement scenarios. You can choose from Number, Bar Graph, Trend Graph, or Histogram modes to visualize your data in the most meaningful way. Monitoring changing values and identifying trends can be done with ease.

As an auto-ranging, true RMS multimeter, it delivers accurate results across various applications. It can record up to 10,000 reading history data points and offers flexible data storage solutions with its built-in 1GB NAND Flash and USB drive capabilities. You can easily save crucial measurement data and configurations. Plus, the instrument offers a range of interface options, including USB, GPIB, RS-232C, LAN, USB-TMC, IEEE 488.2 standard, VXI11, and SCPI language compatibility.

Whether you are a professional technician or an electronics enthusiast, the Uni-T UT8805E is a reliable tool for benchtop testing.

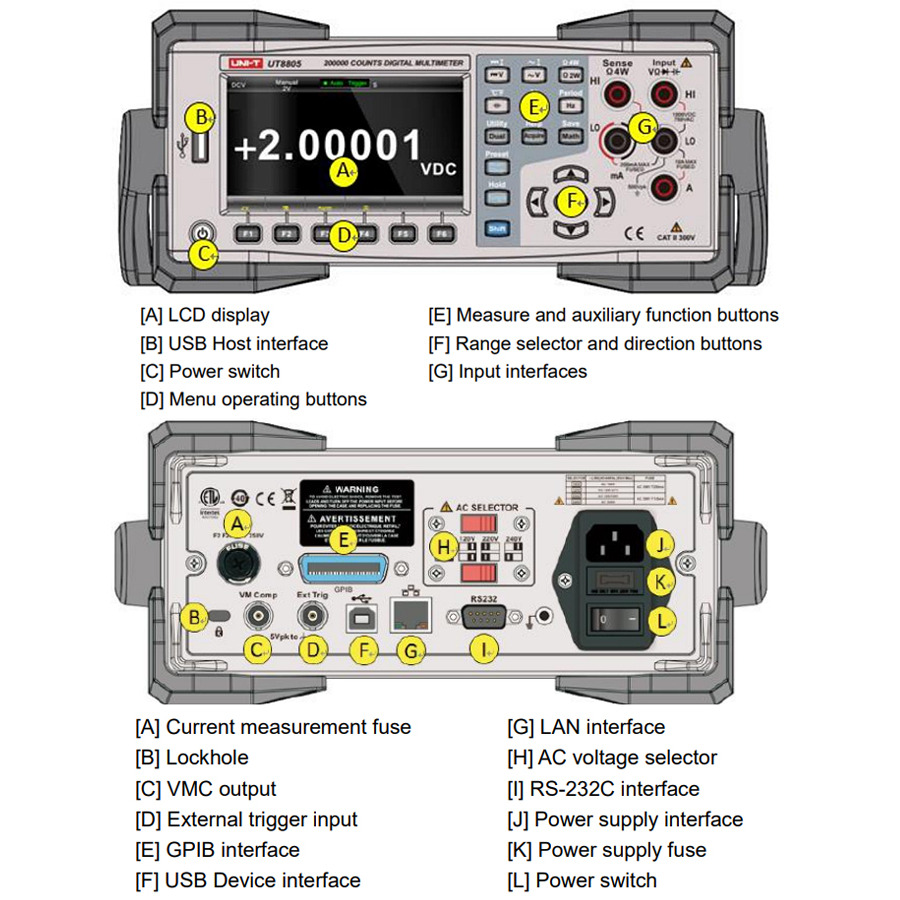

UT8805E Multimeter Panel Features

UT8000E Series of Digital Multimeters

The Uni-T UT8000E Series of DMMs are a must-have for electrical engineers who prioritize accuracy, flexibility, and ease in their measurements. Boost your testing potential and guarantee the success of your projects. This series includes five models, catering to a spectrum of needs from basic value to advanced, and all points in between where precision is paramount. These DMMs are suitable for an extensive array of electrical engineering applications, enabling you to handle a variety of tasks effortlessly. Models are:

• Value-Series
  • UT8802E - 4.5 Digit Display, Manual Ranging, 19,999 Counts, 0.1% Accuracy
• Classic-Series
  • UT8803E - 3.8 Digit Display, Auto-Ranging, TRMS, 5,999 Counts, 0.03% Accuracy
• Advanced-Series
  • UT8804E - 4.8 Digit Display, Auto-Ranging, TRMS, 59,999 Counts, 0.025% Accuracy
• Performance-Series
  • UT8805E - 5.5 Digit Display, Auto-Ranging, TRMS, 199,999 Counts, 0.015% Accuracy
  • UT8806E - 6.5 Digit Display, Auto-Ranging, TRMS, 1,999,999 Counts, 0.0035% Accuracy

What's in the Box

• UT8805E Digital Multimeter
• Power cord
• USB cable
• RS232 interface cable
• Test Leads
• Quick Guide
